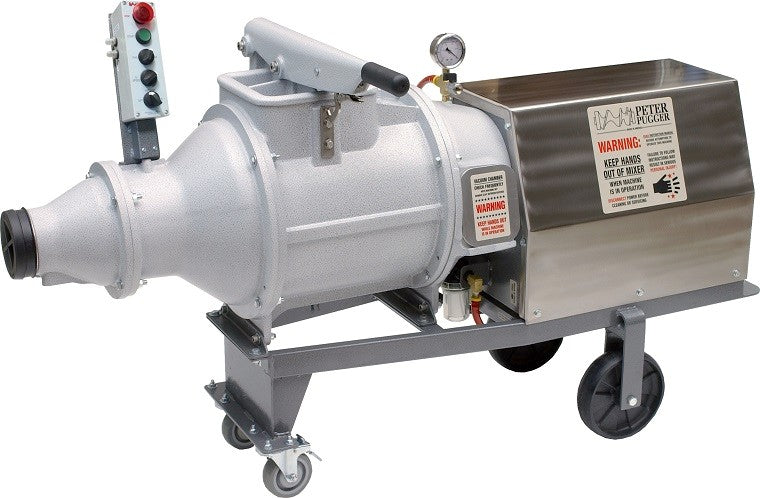

VPM-60 Vacuum Power Wedger

“The Vacuum Deairing Pugger-Mixer”

Commonly referred to as the “Cadillac” of vacuum deairing mixing pugmills, this work horse has been a proven design for many different industries.  Ironically, the VPM-60 contributed to the design of the Cadillac.  General Motors and other Automotive companies utilize the VPM-60 for providing Engineers with warm modeling clay.

• Maximum Batch Capacity*: 140 pounds
• Pugging Rate: 1,500 lbs. per hour
• Mixing Rate: 500 lbs. per hour
• Dimensions: 58″L x 24″W x 31″H
• Hopper Door Size: 9″ x 9″
• Pug Size: 3.5″ round
• Electrical: 2 HP 1-phase, 18 amps at 240V
• Vacuum Pump: 1/2 HP, (Included; operates off main electrical)
