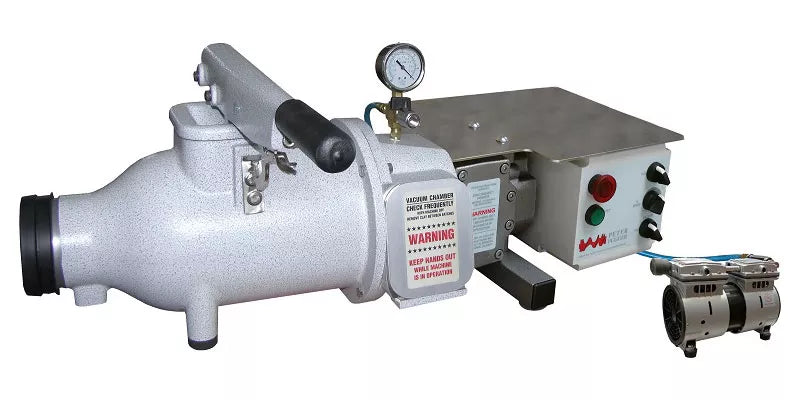

VPM-7 Vacuum Power Wedger

Please Call (405)510-0776 or email office@mammothclay.com to order.

“The Vacuum Deairing Pugger-Mixer”

The VPM-7 has arrived. With all the bells and whistles, and a price that competes with the standard “offshore” pugmills, the compact VPM-7 does it all. Any clay that has not been fired can be reclaimed in the VPM-7. With the fastest mixing times in the industry, broken green ware, slop, powder and water can be thrown into the pugmill and reclaimed in minutes. With the latest advancements in mixing, deairing and extruding technology, the VPM-7 outshines the competition. Quality, durability and proven performance…Why settle for anything else

• Maximum Batch Capacity*: 14 pounds
• Pugging Rate: 350 lbs. per hour
• Mixing Rate: 100 lbs. per hour
• Dimensions: 33.5″L x 12″W x 13.75″H
• Hopper Door Size: 4.5″ x 4/5″
• Pug Size: 3″ round
• Electrical: 1/2 HP 1-phase, 6 amps at 120 volts, 4 amps at 240V
• Vacuum Pump: 1/3 HP, (Included; operates off main electrical)
